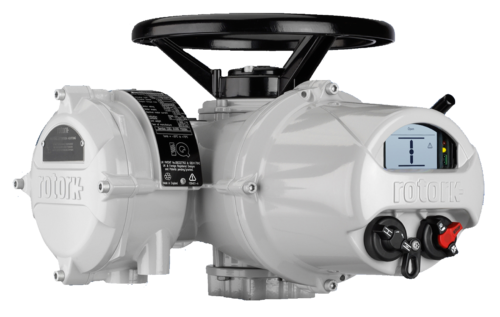

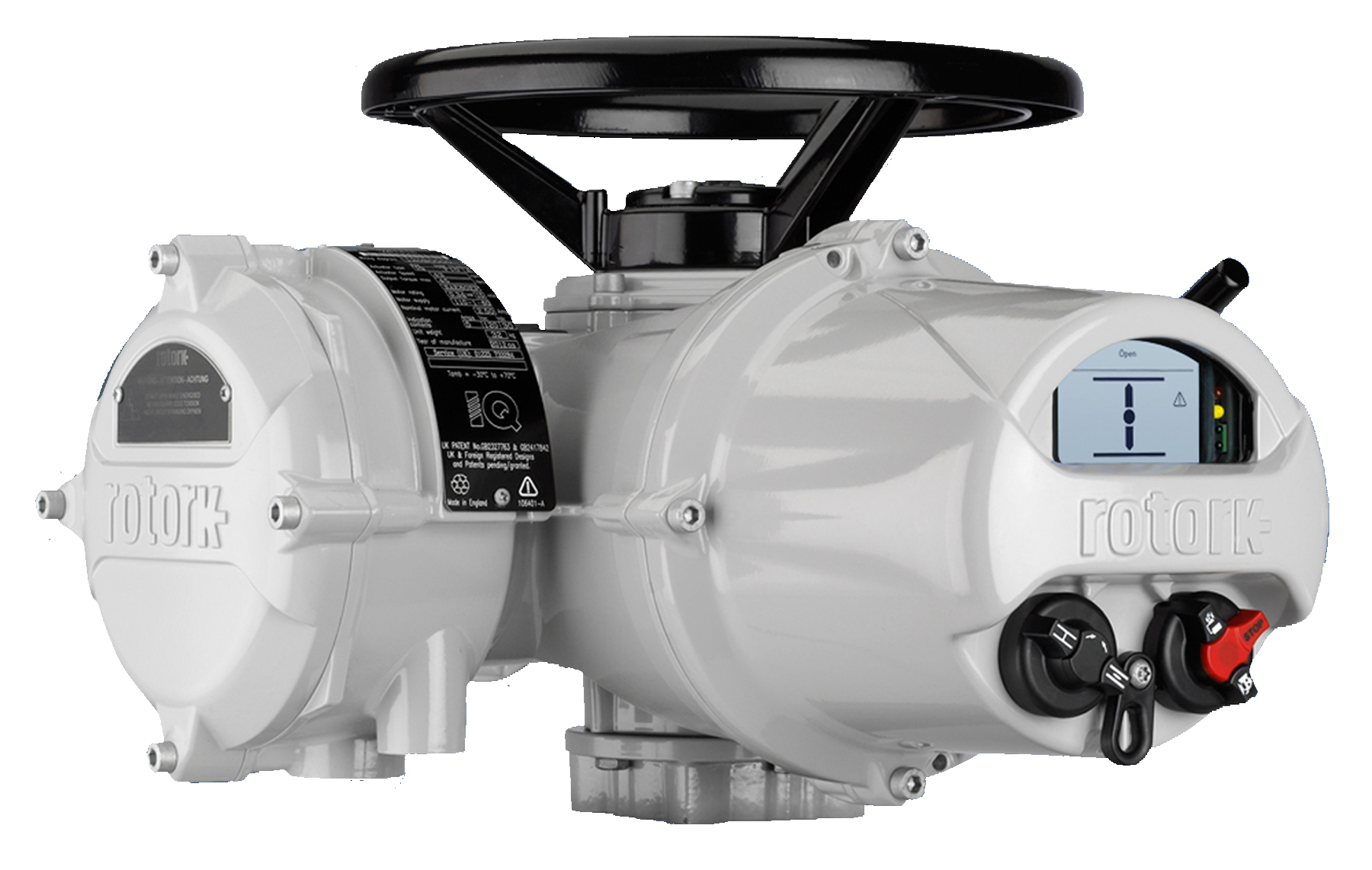

اکچویتور روتورک سری Rotork IQ / IQ Pro

IQ10, IQ12, IQ18, IQ19, IQ20, IQ25, IQ35, IQ40, IQ70, IQ90, IQ91, IQ95 و…

1A Complete gearcase, centre column, wormshaft & wormwheel, torque spring pack
1B Centre column
1C Sliding clutch, coil spring, washer, o-ring
1D Switch mechanism / encoder drive shaft, bush, clip, seal
1E Wormwheel & wormshaft including spring pack
1F Wormshaft thrust end cap bearing assembly
1G Wormshaft maintenance kit. Bearings, seals, o-rings, screws etc
1H Torque mechanism, lever, quadrant gear, gear drive
1J Hand / Auto mechanism, lever, cam, spring, stop bolt, seal
1K Gearcase base flange plate

1L Gearcase maintenance kit. O-rings, seals, bearings, circlips, screws etc

Module 2: Bases: Thrust / Non-Thrust
2A Thrust base assembly complete, all variants
2B Thrust base assembly less drive coupling
2C Drive coupling only
2D Thrust bearing assembly only
2E Drive coupling and thrust bearing assembly
2F Base maintenance kit. O-rings,
split ring, retainer clip
2G Thrust base adaptor F10 to F7 / FA10 to FA7

Module 3: Mechanical Switch Mechanism / Digital Switch Mechanism
3A Mechanical switch mechanism
3A1 Mechanical switch mechanism (anti-clockwise)
3B Digital switch mechanism
3C Cable guide
3D Torque switches x2 including looms
3E Limit switches x2 including looms
3F Blinker switch including loom
3G Additional torque indication switches x2
including looms
3H Additional limit switches x2
including looms
3J Heater

Module 4: Handwheel
4A Handwheel assembly complete – worm gearing & hand wheel
4B Handwheel only
4B1 Anti-clockwise label and screws
4C Side handwheel maintenance kit, bearing, o-rings, seals etc
4D Hand wheel spur box cover, plastic cover, o-ring, screws

4E Spindle cover tube

Module 5: Motor
5A Motor assembly complete, stator/rotor, Motor cover, bearing, screws & o-ring
5B Motor maintenance kit, bearing, spring, screws & o-ring

Module 6: Centronik
6A Centronik assembly complete
6B Centronik cast body only
6C Power module only
6C1 Power module chassis
6C2 Power PCB
6C3 Transformer
6C4 Fuse PCB
6D Power module including reversing contactor
6D1 Power module including solid state starter
6D2 Solid state starter only
6E Reversing contactor assembly only
6F Control PCB
6G User interface cover complete assembly – Cover, control knobs, HMI PCB, o-ring
6G1 Cover, control knobs. Not including HMI PCB
6G2 User interface PCB
6G3 Both control knobs -Open Close and
Local Remote
6G4 Locking latch assembly
6G5 Window
6G6 Window UV cover
6G7 Bluetooth ® PCB
6H End cover including o-ring
6J Cover screws and o-rings
6K1 Profibus ® DP
6K2 Profibus ® DP dual channel
6K3 Modbus ® RTU
6K4 Modbus ® RTU dual channel
6K5 Foundation Fieldbus ®
6K6 HART®
6K7 Extra 4 indication relay card
6K8 Analogue positioner + current position transmitter
6K9 Analogue current position transmitter (CPT)
6K10 Analogue current torque transmitter (CTT)
6K11 Analogue current position transmitter (CPT) Loop powered
6K12 Analogue current torque transmitter (CTT) Loop powered
6K13 PakscanTM
6L Auxiliary DC to DC card
6M Single-phase motor starter capacitor pack Variable item
6M1 Deep cover – o-ring and screws
6M2 Capacitor pack and switch PCB
6M3 Switch PCB

Module 7: Terminal Plug / Connector Blocks
7A Complete assembly
7B Connector block with sockets
7C Connector block with pins
7D Plug assembly 4 conduit entries including connector block
7E Plug assembly blank for customer customisation including connector block
7F Remote mounting kit complete
7F1 Remote mounting frame
7F2 Connector housing
7F3 Mounting bracket, M10 fixing bolt, lock nut
7F4 DSM isolator PCB (not shown)
7G Profibus disconnect module including PCB and connector block
7G1 Module cover
7G2 Profibus disconnect PCB only
7G3 Profibus dual channel disconnect PCB only
7G4 Profibus disconnect housing and connector block only
7H Parking module
7H1 Parking cover
7H2 Parking frame
7J Terminal plug maintenance kit, o-ring, snap ring, spacer, screws (not shown)

Module 8: Additional Indicator Drive
8A Gear drive including, position indicator, switches Variable item
8B Gear cassette
8C Middle travel switches x2
8D Middle travel Switches x4
8E Potentiometer + drive gear
8F Analogue current position transmitter (CPT) Standard build only
8G Mechanical position indicator disc

Module 9: Standard single-phase motor starter pack
9A Standard single-phase motor starter pack complete Variable item
9B Single-phase motor starter capacitor pack Variable item
9C Cover

Module 20: Mechanical Switch Mechanism / Digital Switch Mechanism Cover
20A Mechanical Switch Mechanism / Digital Switch Mechanism cover
20B Additional Indicator Drive deep cover
20C Deep cover window
20D Cover maintenance kit. O-ring, screws
